LX992Z

Filter

Introducing the LX992Z, supervised by Katsutaka Imae!

* As this is an image, it may differ from the actual product.

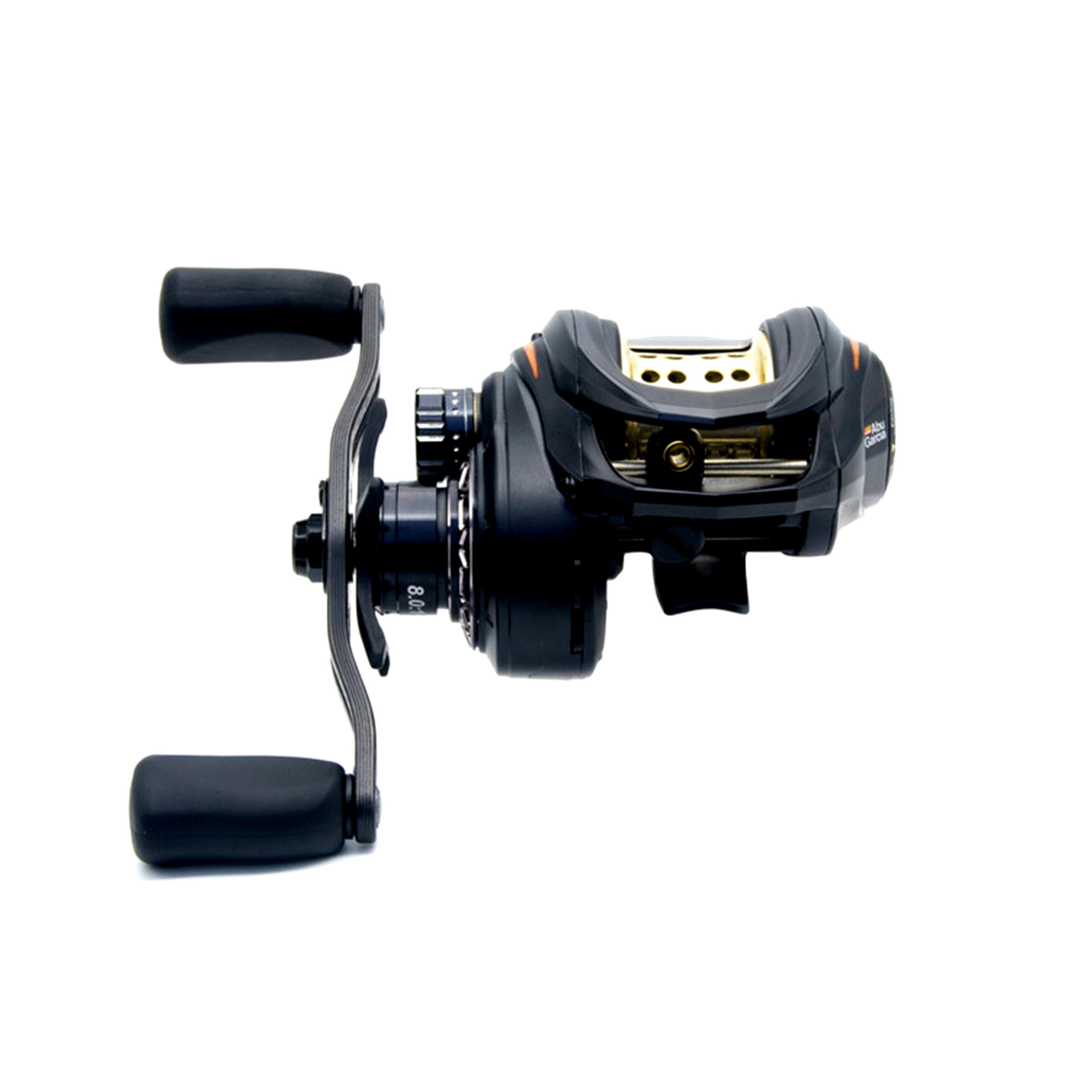

Introducing LX992Z, supervised by Katsutaka Imae

Signature BF model with an aluminum frame. Uses highly durable, high-speed ceramic super-free HPC ball bearings. A combination of shallow pool and deep spool supports all styles.

Katsutaka Imae Pro Comment

First of all, the absolute minimum requirement for your reel is an “aluminum frame” with high frame rigidity and accuracy.

Resin frames and magnesium frames are certainly light, but frame rigidity is an absolute requirement for me to prioritize everything from the viewpoint of aging durability, and resin frames and magnesium frames have the advantage of being overwhelmingly lightweight, but it is an extreme story. , When hooking or fighting, I feel “uncomfortable feeling like crushing”.

Actually, it is impossible to squeeze with a grip strength of about 60 kg, but in bait finesse where ultra-high precision spool accuracy is the life, frame distortion (distortion) makes a decisive difference in reel life.

Frame rigidity is even more important when considering support for “PE bait finesse” without play.

A high-rigidity aluminum frame is an absolute requirement for PE bait finesse.

Also, since the “middle spool” that comes with the spare can wind 14Lb for 75m, there is no need to worry about the line being shorted by the full cast unless it is a metal vibe.

It should be noted that the “LX992Z middle spool” is finished in a cast feel for winding products even in the normal state.

In addition to the bait finesse ability of “LTZ” or higher in the default state, the feature of “LX992Z” is that it greatly exceeds “LTZ” as a wound mono reel.

Feature

Dura metal frame

The aluminum frame is designed to the utmost while focusing on weight reduction without reducing strength.

Material setting considering stability and tough use in retrieval.

C6 side plate

Unique new material C6 carbon is an engineering plastic reinforced with carbon fiber,

Its rigidity is comparable to magnesium.

By using this material, we have achieved a significant weight reduction without sacrificing strength and durability.

Zero brake system

Equipped with 5 magnet pockets for 3 mm thickness and 5 for 1.5 mm thickness

Bait reel that can smoothly transition from casting to pitching.

It can be said that the basic idea of the zero brake system is such a wide range, in other words, versatility.

The basic mug brake of LX992Z is 2.3g Aberaba & Uncle Goby at “0 position” indicated by the yellow arrow.

7-8 lbs Fluoro 55 rpm standard pitching and casting stress-free

It is a setting that is compatible at the same time.

Soft coated BFC light finesse knob

The handle knob has a hollow structure to achieve thorough weight reduction.

Uses an easy-to-grip form and optimal surface processing.

Carbon star drag

Carbonization is indispensable for weight reduction. Like the handle arm

The star wheel is also made of carbon, which contributes to weight reduction.

90mm crank Dura carbon handle

By laminating a highly elastic carbon material, it contributes to high strength, weight reduction and sensitivity improvement.

The length is 90 mm.

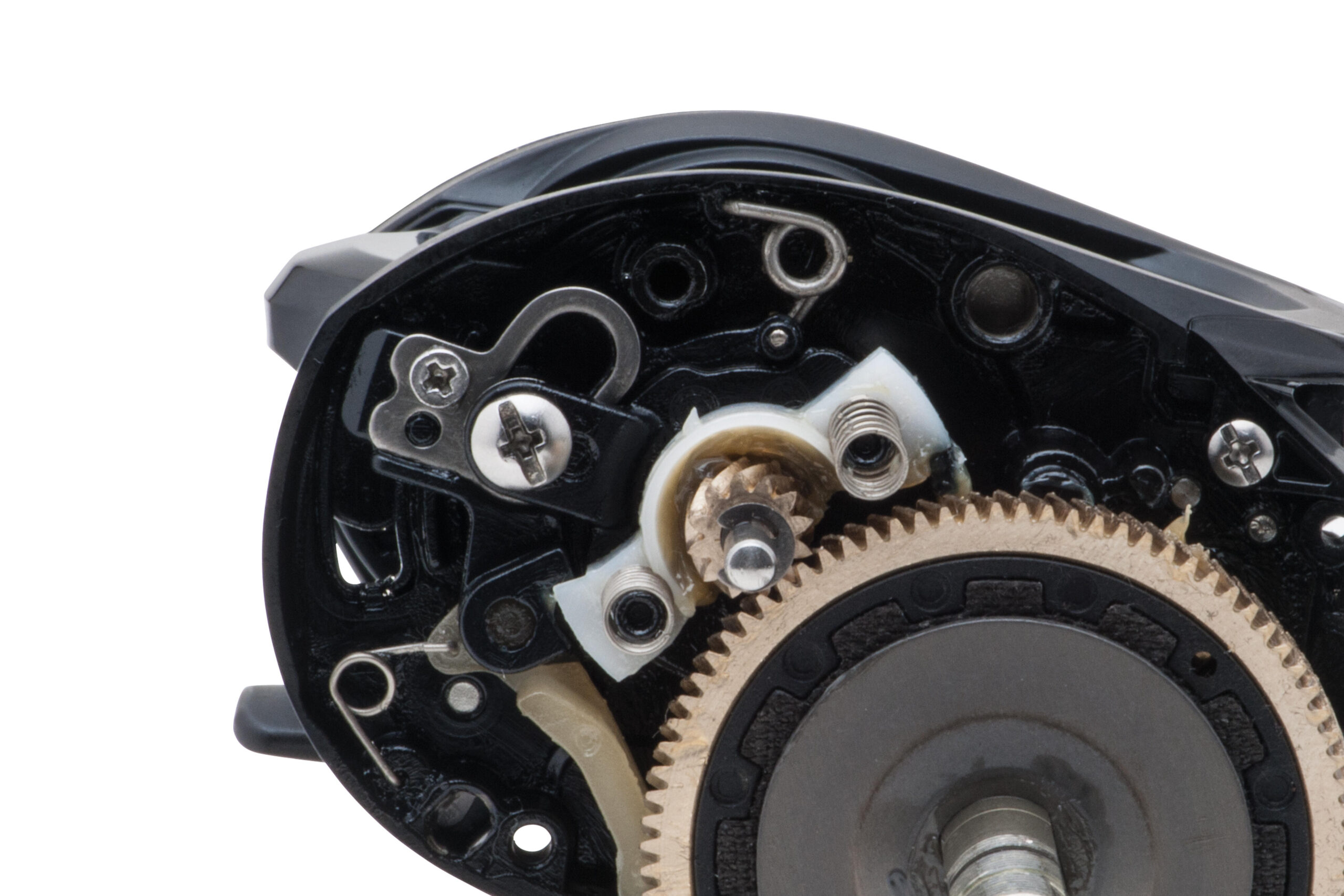

Dura clutch

Thorough review of the moving part, easy to cut and improved durability

It has a clutch structure.

Ceramic Super Free　
HPC-BB

Uses highly durable ceramic balls. Also, miniaturization of ball bearings is a means of reducing resistance, but it becomes vulnerable to load.

Abu Garcia reviewed the design of the ball bearing groove of the bearing and succeeded in developing a ball bearing of the conventional size with low rotational resistance.

Improved low trajectory pitching and long throw performance.

Carbon matric drag with click mechanism

By adopting Abu Garcia’s original carbon matrix drag washer, it is possible to apply higher drag force while maintaining smooth performance in a wide range.

By introducing a clicker, it is possible to grasp the speed drawn from the drag and communicate while being aware of the line break.

Lure keeper

Equipped with a lure keeper that is useful for moving small places.

It is possible to hang a nail on the protrusion and pull it out.

At the same time, if you store the line through the half-moon-shaped hole, it will be useful when storing as a function of the line keeper.

Salt Shield TM Pinion Bearing

By adopting a newly developed ball bearing with a water-repellent coat applied to the entire inside and outside, the salt shaving phenomenon that causes abnormal rotation noise is drastically reduced.

We have succeeded in greatly improving the rotation feel and durability. It is used for the pinion gear part where salt crystals are most likely to remain on the dual-axis reel.

Product features

Own weight 160g
Ceramic Super Free HPC BB
Zero brake system
Soft coated BFC light finesse knob
DURAMETAL frame
DURA clutch
C6 side plate
Salt Shield Pinion BB
Carbon matrix drag with click mechanism
Carbon star drag
Infini spool design
Extra super duralumin gear
Lure keeper
90mm Dura carbon handle

Description

Product code	JAN / UPC	product name	Own weight (g)	Gear ratio	Maximum line winding (cm)	Maximum drag force (Kg)	Main body spool line capacity 0.235mm / 8lb	Main body spool line capacity 0.260mm / 10lb	Spare spool line capacity 0.285mm / 12lb	Spare spool line capacity 0.310mm / 14lb	Space pool line capacity 0.330mm / 16lb	Ball / Roller Bearing	Manufacturer’s desired body price (excluding tax)
1525352	036282987586	LX992Z	160	8.0: 1	83	7	100m	80m	100m	85m	75m	9/1	¥ 45,400
1525353	036282987593	LX992Z-L	160	8.0: 1	83	7	100m	80m	100m	85m	75m	9/1	¥ 45,400

Please Note:

Many of the descriptions have been translated using Google translate. jdmfishing.com has modified some of these to better accommodate the reader and will continue to improve upon this as we move forward.
