| Product code | JAN / UPC | product name | Own weight (g) | Gear ratio | Maximum line winding (cm) | Maximum drag force (Kg) | Line capacity / approx. 0.370mm / approx. 20lb | Line capacity / approx. 0.418mm / approx. 25lb | Line capacity / approx. 0.450mm / approx. 30lb | Line Capacity / PE5 | Line Capacity / PE6 | Line Capacity / PE7 | Line Capacity / PE8 | Ball / Roller Bearing | Manufacturer’s desired body price (excluding tax) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1501038 | 036282968493 | REVO BEAST 40 X | 265 | 6.4: 1 | 75 | 11 | 150m | 115m | 100m | 120m | 100m | 80m | 70m | 7/1 | ¥ 19,500 |
| 1501039 | 036282968509 | REVO BEAST 41 XL | 265 | 6.4: 1 | 75 | 11 | 150m | 115m | 100m | 120m | 100m | 80m | 70m | 7/1 | ¥ 19,500 |
BEAST size has been added to the REVO X series.
* As this is an image, it may differ from the actual product.
Product Description
BEAST size has been added to the REVO X series.
Reels with sufficient line capacity are even cheaper. For big baits, catfish, snakehead games, and SW games.
Feature
X-CRAFTIC Frame & Crank Side Plate
The aluminum frame is designed to the utmost while focusing on weight reduction without reducing strength.
Material setting considering tough use in salt.
The side plate is also made of aluminum and is designed to be sturdy, enabling firm reeling.
Magtrax Brake System
In windy conditions, the lure tends to be pushed back by the wind from the beginning and backlash.
Therefore, the brake will surely work from the moment the lure is released,
It is equipped with a magnetic Magtrax braking system.
Power Stack Carbon Matrix Drag
Normally, when there are two drag washers, only two sides of one side are effective, whereas
By making the outer diameter of the drag washer uneven, it is effective on three sides, one more than usual.
Not to mention the maximum drag force of 11 kg, it demonstrates excellent sliding performance.

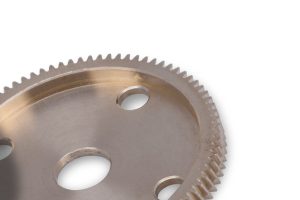

D2 gear design large caliber brass gear
Equipped with a tough large-diameter brass gear, which improves durability and strength.
You can fight with big players with peace of mind with strong gear.
Dura clutch
The operating part has been thoroughly reviewed to create a clutch structure that is easy to cut and has improved durability.
95mm long 4mm thick handle crank handle + big flat knob
4mm thick, sturdy and powerful 95mm handle arm. Uses a big flat knob that is easy to grip.
Product features
- Own weight 265g
- Magtrax Brake System
- Power Stack Carbon Matrix Drag
- D2 gear design
- Dura Gear Large Caliber Brass Gear
- Dura clutch
- High durability X-Craftic aluminum frame & crank side plate
- 37.5mm spool diameter
- 95mm 4mm thick handle
- Gear ratio 6.4: 1
- 30lb-100m PE 5-120m
- 7/1 bearing
- Big flat knob
Description
Please Note:
Many of the descriptions have been translated using Google translate. jdmfishing.com has modified some of these to better accommodate the reader and will continue to improve upon this as we move forward.
